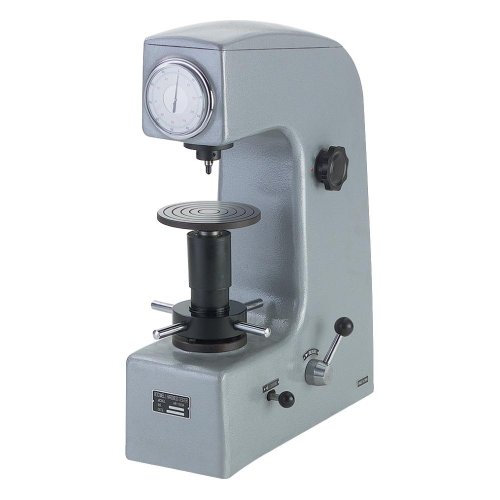

41KAwPLHMzL. SL160 Grizzly G9645 Hardness Tester
See larger image

Grizzly G9645 Hardness Tester (Misc.)

List Price: $825.00 USD

buyamzon button Grizzly G9645 Hardness Tester

Key Features

  • Designed for measuring hardness of metals and alloys of all kinds, hard or soft, whether flat, round or irregularly shaped
  • Simple in design and easy to operate, yet sensitive and accurate
  • Ideally suited for schools, laboratories, tool rooms and inspection departments
  • Conforms to IS 3804-1966 and BS: 891-1962 part I and part II for Rockwell tests

Specifications:

  • Maximum load (KGF): 150
  • Load range (KGF): 60, 100, 150
  • Initial range load (KGF): 10
  • Maximum test height: 4-1/4″
  • Depth of throat: 5-1/4″
  • Maximum depth of spindle below base: 2″
  • Size of base: 7″ x 18″
  • Machine height: 24-1/2″
  • Approximate net weight: 195 lbs.

Standard Accessories:

  • 5-3/4″ testing table
  • 2-3/16″ testing table
  • 120 degree diamond penetrator
  • Rockwell A test block (1-pc.)
  • Rockwell B test block (1-pc.)
  • Rockwell C test blocks (3-pc.)
  • Screwdrivers
  • Complete instruction manual
  • Dust proof plastic cover
